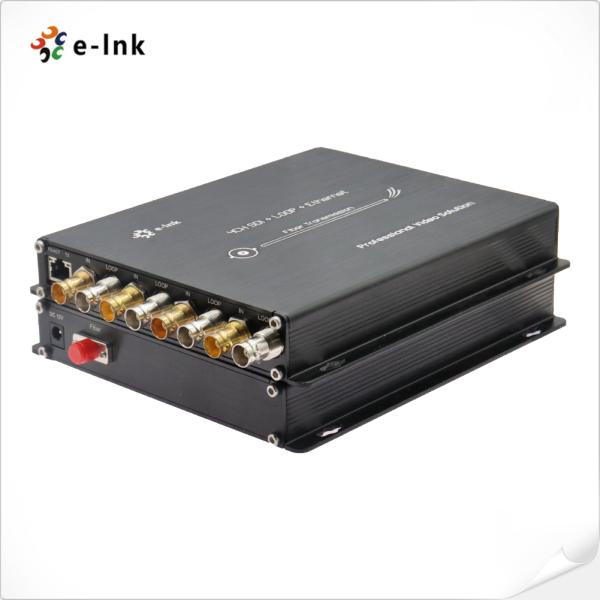

4-Channel 3G-SDI Fiber Converter with Ethernet

Brand Name : E-link

Model Number : LNK-3GSDI-4V1N

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : $25-369

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Fiber Converter Standard Export Package

Keywords : SDI Fiber Converter

Ethernet : 10/100/1000Mbps

Operating Temperature : -10℃～＋55℃

Power Input : 1A@12VDC

Average time trouble-free : >100000 hours

Contact Now

4-Channel 3G-SDI Fiber Converter with Ethernet

4-Channel 3G-SDI Fiber Converter with Ethernet Advantages

► 4 channel 3G/HD-SDI video transmission over optic fiber

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s

► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output

► Long transmission up to 20 km (12.5miles) (Other distance Optional)

► Full digital non-compression broadcast level transmission;

► Support 1000M Ethernet;

► Working temperature range (-10℃~+55℃)

4-Channel 3G-SDI Fiber Converter with Ethernet Overview

LNK-3GSDI-4V1N Series supports 4-channel HD/3G-SDI standard high-definition video signal and Ethernet and Tally signal transmitted via single fiber optical cable. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can transmit 4-Ch 3G-SDI Video signal through a single optical fiber, and it support Loop output and 1000M Ethernet. The video quality is non-compressed broadcast level. It’s widely used in broadcast field.

4-Channel 3G-SDI Fiber Converter with Ethernet Technical Indexes

SDI Input

SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom

270Mbit/s - 1.48Gbit/s – 3Gbit/s

Input number: 4

Reflection loss: >15DB

Equilibrium: 0-150m @3Gb/s

Connector: BNC

Optics

Channel: 1

Type: single-mode

Transmission distance: 20km (Other distance Optional)

Reflection loss: > 15dB

Dithering: < 0.2UI

Connector: FC/UPC (SC, LC, ST optional)

SDI Output

Output number:4

Signal level: 800mV nominal

Rise/fall time: 200ps indication

Overshoot: < 10% amplitude

Reflection loss: >15dB

Dithering: < 0.2UI

Connector: 75Ω BNC

4-Channel 3G-SDI Fiber Converter with Ethernet Ordering information

LNK-HDSDI-4V1N

4-Ch HD-SDI Video with Loop output + 1 1000M Ethernet, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-3GSDI-4V1N

4-Ch 3G-SDI Video with Loop output + 1 1000M Ethernet , SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs


4-Channel 3G-SDI Fiber Converter with Ethernet





Product Tags:

Ethernet SDI Fiber Converter



3G-SDI Fiber Converter



4-Channel 3G-SDI Fiber Converter


China 4-Channel 3G-SDI Fiber Converter with Ethernet wholesale

4-Channel 3G-SDI Fiber Converter with Ethernet Images
