Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID

Name: Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID
Brand: E-link
Price: 79 USD

China Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID wholesale

Brand Name : E-link

Model Number : LNK-D4K-MM

Place of Origin : China

MOQ : 1 pcs

Price : $79-769

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

The warranty : 1-year warranty

Dimensions (WxDxH) : 69mm x 42 mm x 18.2 mm

Operating Temperature : 32° to +112° F. (0° to +50° C)

Storage Temperature : -40° to +185° F. (-40° to +85° C)

Fiber Cable : 50/125μ OM3 Multi-Mode Fiber:≤300m

EDID Support : Support EDID pass-through

Contact Now

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID

Advantages

► Support DVI 1.0 and HDMI v1.4

► Support EDID pass-through.

► Support resolutions up to 3840x2160/30P

► 7.1 channel LPCM, 192 kHz, 24-bit

► Support 3840*2160/60P(YUV 420)

► Plug and Play ,Built-in EQ(Receiver)

► Support 4K/30P@ Single-Link

► Two fiber,2-ways

► Bandwidth up to 10.2 Gbps

► Up to 300m distance by Multimode Fiber

► Support the HDCP 1.4

► Low RFI / EMI

► Support 3D TV pass-through

► Surface-mountable

Overview

E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.

The LNK-D4K-MM series is a high performance 4K Optical Extender that transmits high resolution DVI signals over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (3840*2160/30p) over cable distances up to 300m.

Order Information

Model	Description
LNK-D4K-MM-S	Mini 4KX2K DVI Fiber Sender Auto EDID,DC5V1A
LNK-D4K-MM-R	Mini 4KX2K DVI Fiber Receiver Auto EDID,DC5V1A


Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID

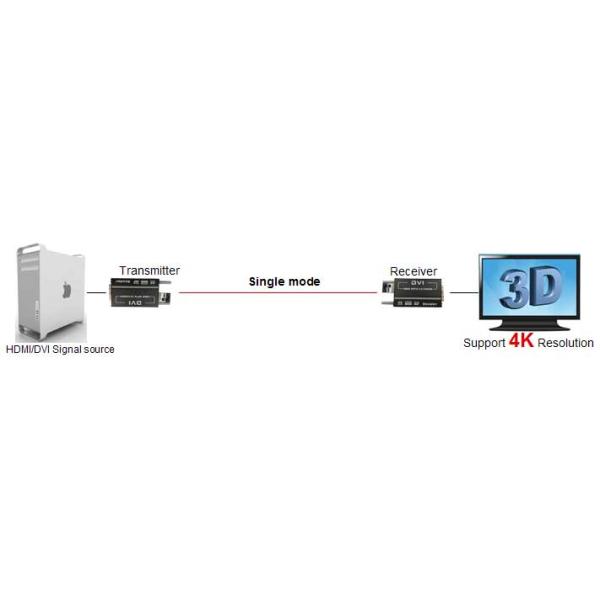

Application

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID
