1080P HDMI KVM Fiber Optic Extender
1080P HDMI KVM Fiber Optic Extender Advantages
► Real Time Transmission, HDCP 1.2 compliant
► Supports DVI 1.0 and HDMI v1.3
► Supports resolutions up to1920*1080/60P
► Supports 1920*1080/60P resolution with color depth up to 24 bits/pixel
► Supports HDMI bit-rates up to 2.25Gbps color, 6.75Gbps total, CEC are NOT supported!
► Support USB Keyboard and USB Mouse
► LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™
► Built-in EQ(Receiver), Plug and Play, Surface-mountable
► Up to 300m distance by OM3-300(Custom Available)
► Low RFI / EMI profile for sensitive applications
1080P HDMI KVM Fiber Optic Extender Overview

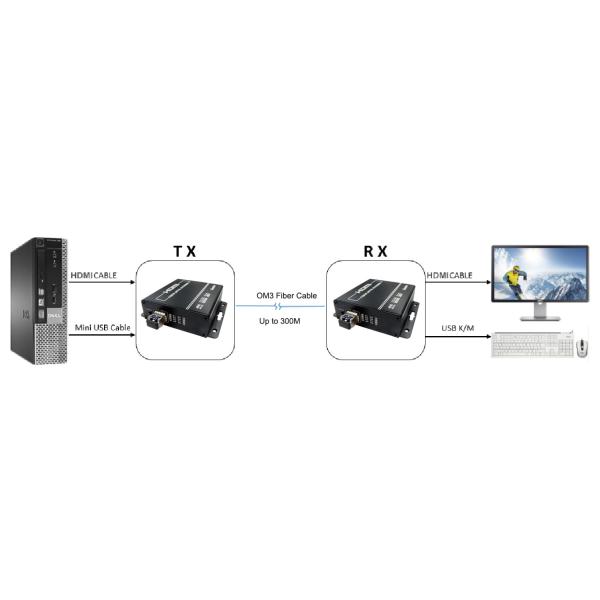

The LNK-1240KVM series is a high performance 1080P HDMI KVM Fiber Optic Extender that transmits high resolution DVI / HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.3 signals with resolutions up to 1080P (1920x1080/60p) over cable distances up to 300m (Multimode Fiber) or 10km (Single Mode Fiber).
1080P HDMI KVM Fiber Optic Extender Technical Indexes
| Performance |
| Compliance | HDMI v1.3 |
| Maximum Pixel Clock Frequency | 225 MHz |
| Maximum Video Bit Rate | 2.25 Gbps |
| Supported Color Depth | 24-bit |
| Supported Resolutions | 1920x1080/60P |
| Digital Audio Support | 7.1 channel LPCM, 192 kHz, 24-bit audio capability |
| Connections | Description |
| HDMI Input / Output | 1x HDMI Type-A Female connector |
| Optical | 1x SFP+ port |
|  Cable
| |
| Fiber Cable Type / Max. Length | 50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters) 9/125μ Single Mode Fiber: ≤ 10KM |
| Extended function | |
| KM Support | USB Keyboard x 1 / USB Mouse x1 |
| CEC Support | CEC are NOT supported! |
| DDC Support | |
| Mechanical | |
| Construction | High-impact Alufer enclosure |
| Dimensions (L x W x H) | 89mm x 104 mm x 28.3 mm |
| Net Weight | 200 g |
| Environmental | |
| Operating Temperature | -32° to +122° F. (-0° to +50° C) |
| Storage Temperature | -40° to +185° F. (-40° to +85° C) |
| Operating Humidity | 5% to 80% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Power Requirements | |
| External AC Power Adapter | Input: 100-240VAC / 50-60Hz 0.2A
Output: 5VDC, 2.0A |
| Power Consumption | 3 watts |
| Warranty | |
| Limited Warranty | 2 year warranty |
1080P HDMI KVM Fiber Optic Extender Ordering Information
| Model | Description |
| LNK-1240KVM -T | 1080P HDMI KVM Fiber Optic Extender Transmitter |
| LNK-1240KVM -R | 1080P HDMI KVM Fiber Optic Extender Receiver |
