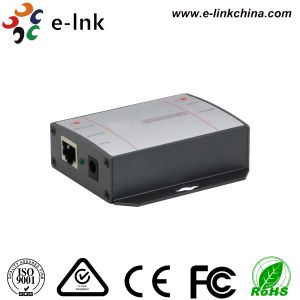

56VDC 35W 10/100/1000M Gigabit POE Injector
Product Advantages
► Up to 56V 35W of PoE Power
► Fully IEEE802.3af/IEEE802.3at compliant
► Supports 10/100/1000M LAN environment
► Plug & Play
► No configuration required
► Reduced Installation cost
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non–standard Ethernet Terminals
Overview
LNK-PSE2424G 24W – 24V Gigabit PoE Injector is a long-distance driving, fast network performing, strong PoE Output midspan. It is a single port indoor PoE injector that can provide up to 24W.
The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other power Ethernet end terminals with 24W of power. With plug and-play installation, they are easy and cost effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Technical Indexes
| Parameter | Specifications |
| Features | • Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45 |
| • Data Input Interface RJ-45 10/100/1000Base-TX |
| • Output Port Power Cable Included |
| Data Rate | 10/100/1000Mbps |
| Input Power | 90-240V AC ,50-60Hz |
| Output Power | 35W 56VDC |
| Wiring | • Data provide over pairs 1/2(+) and 3/6(-) |
| • Power over spare pairs 4/5(+) and 7/8(-) |
| LED Display | YES |
| Operating Temperature | 0 to +40°C, |
| Humidity | Max. 95% RH(non-condensing) |
| Dimension | 61×40×12(H×D×W) |
| Weight | 200g |
Ordering Information
| Model | Decription |
| LNK-POE56V | PoE Adapter, 10/100/1000Mbps, support 56V 35W PoE power |
