Industrial 1-2Ch CAN Bus to Fiber Optic Converter
Product Advantages
· Integrated circuits based on independent intellectual property rights;
· Provide 1-2 CAN bus interfaces and 1 optical port;
· CAN data is fully transparent, baud rate is self-adaptive, no setting is required
· CAN interface maximum number of nodes 128; CAN interface maximum rate 0-1Mbps;
· The CAN interface speed complies with the international CAN1.0 and CAN2.0 standards;
· Support wide range AC / DC input, support internal isolation, redundant dual power input, power supply support overload protection, anti-reverse protection
Technical Indexes
| Optical Fiber |
| Multi-mode Fiber:50/125um, 62.5/125um |
| Maximum transmission distance | 2Km |
| Wavelength | 850/1310nm |
| Transmitting power | Multimode 850nm: -18dBm Multimode 1310nm: -25dBm |
| Receiver sensitivity | -40dBm~-28dBm |
| Fiber Type | FC/SC/ST (FC in default) |
| Single-mode Fiber: 9/125um |
| Transmission distance | 20~120Km |
| Wavelength | 1310/1550nm |
| Transmitting power | ≥-9dBm |
| Receiver sensitivity | -40dBm~-28dBm |
| Fiber Type | FC/SC/ST (FC in default) |
| CAN Bus Interface |
| Protocol | Comply with international CAN1.0, CAN2.0 standards |
| No. of Ports | 1 (LNK-FCAN01) or 2 (LNK-FCAN02) |
| Rate | 0~1000Kbps |
| Physical Interface | Industrial Terminal |
| CAN Signals | CAN_H, CAN_L, GND |
| Power Supply |
| Power input | AC7V~50C; DC9-55V |
| Power consumption | ≤2W |
| Access terminal | 4-pin 5.08mm pitch plug-in terminal |
| Working environment |
| Working Temperature | -40°C ~ 85°C |
| Storage Temperature | -40°C ~ 85°C |
| Working Humidity | 5%~95 % (no condensation) |
| MTBF | >100,000 hours |
| Mechanical: |
| Dimension (WxDxH) | 133mm×120mm×50mm |
| Casing | IP40 protection, Aluminum case |
| Installation | 35mm DIN-Rail, Wall Mounting |
| Weight | 0.75KG |
Overview
The CAN-to-fiber converters support all the transmission speeds (transmission rates):0-1Mbps. The CAN optical fiber converter can convert the CAN bus signal into an optical signal and transmit it on the optical fiber, which has the effect of extending the communication distance of the CAN bus. At the same time, the use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage.
Application
| Model | Description |
| Industrial 1Ch CAN-to-fiber converters |
| LNK-FCAN01 | Industrial 1Ch CAN BUS Fiber Media Converter: Multimode, Dual Fiber, FC, 2KM |
| LNK-FCAN01-20 | Industrial 1Ch CAN BUS Fiber Media Converter: Single Mode, Dual Fiber, FC, 20KM |
| LNK-FCAN01S-20 | Industrial 1Ch CAN BUS Fiber Media Converter: Single Mode, Single Fiber, FC, 20KM |
| Industrial 2Ch CAN-to-fiber converters |
| LNK-FCAN02 | Industrial 2Ch CAN BUS Fiber Media Converter: Multimode, Dual Fiber, FC, 2KM |
| LNK-FCAN02-20 | Industrial 2Ch CAN BUS Fiber Media Converter: Single Mode, Dual Fiber, FC, 20KM |
| LNK-FCAN02S-20 | Industrial 2Ch CAN BUS Fiber Media Converter: Single Mode, Single Fiber, FC, 20KM |
| Note*: Default FC fiber connector, SC, ST optional |
Product Tags:
|
|

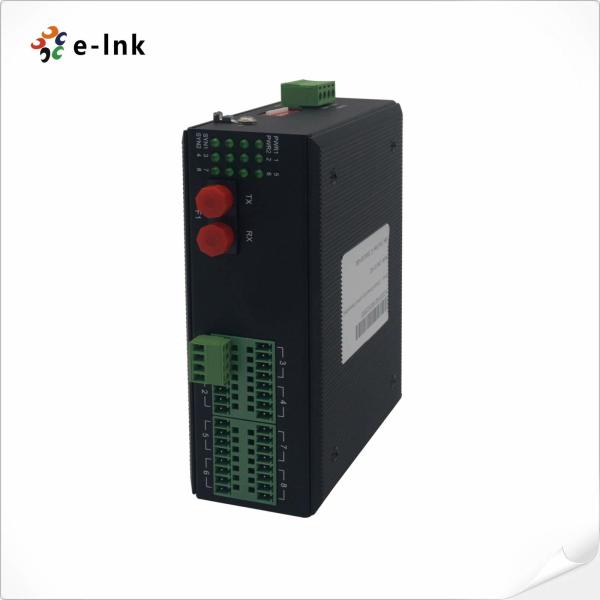

Industrial 1-2Ch CAN Bus to Fiber Optic Converter Images
|
