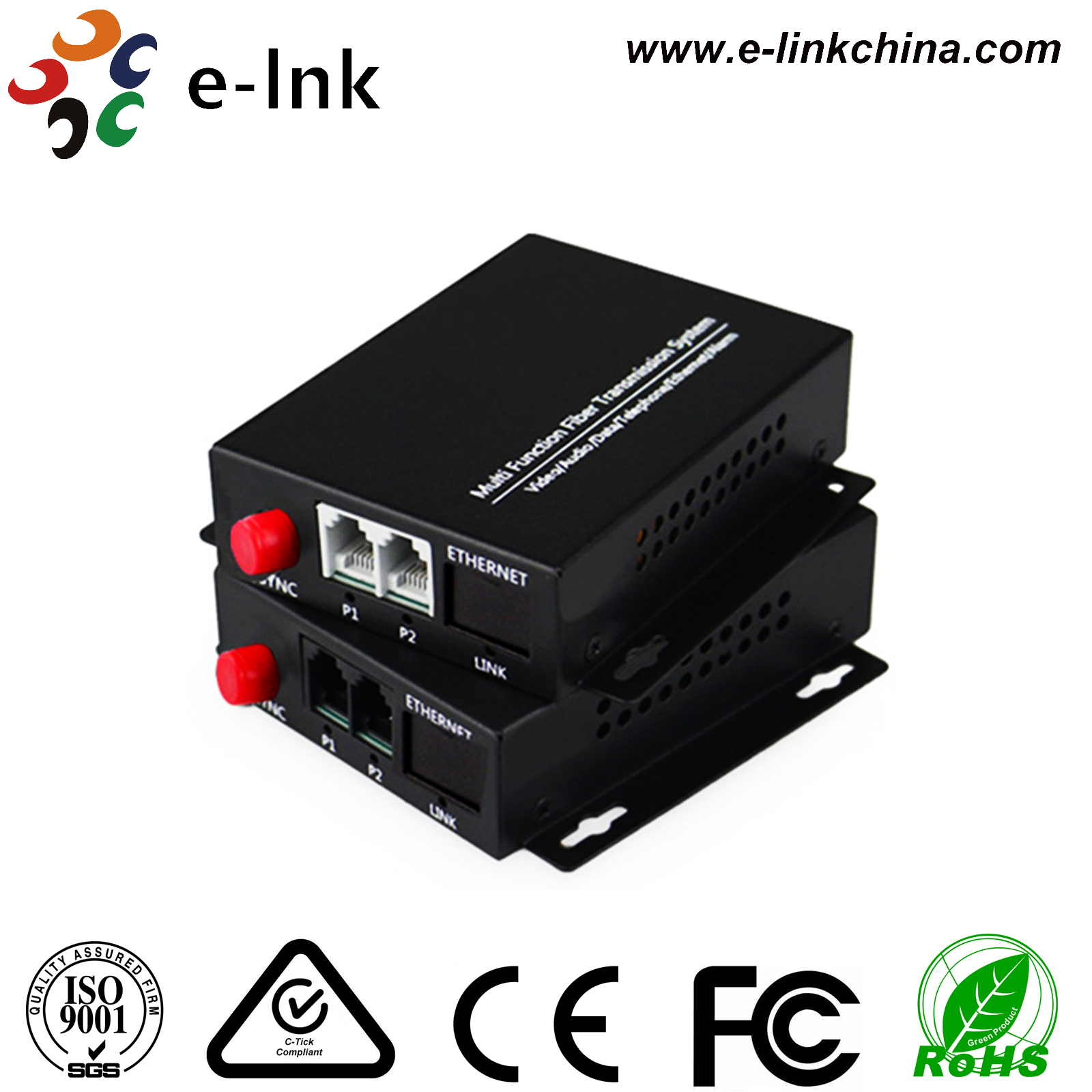

2Ch POTS(FXO/FXS)Telephone over Fiber Mux
Advantages
► standard RJ11 telephone interface
► 2 channel support voice access, Support Caller ID and Fax
► Voice port supports O port and S port, O port connects switch and S port connects user’s phone
► Support FXO / FXS ordinary telephone
► Support point-to-point, cascaded and distributed network connections, and SNR will not decline
► Power link to fiber optic , data status indication LED can monitor system health
► Industrial design, modular design allows flexible and reliable equipment
Overview
E-link 2 channel POTS (Plain Old Telephone System) phone lines over fiber converter / extender. This Voice over Fiber converter uses RJ-11C modular connectors for each copper pair connection. FXO type unit connects to a telephone line (PSTN) or PBX station line and has ability to detect ringing voltages and to act as a telephone. FXS type unit is the reciprocal unit and has ability to act as PSTN and connects to a telephone device.
Technical Indexes
|
Product Name
|
2 channel telephone over fiber converter
|
|
Product Model
|
LNK-PCM02 Series
|
|
Description
|
FXO/FXS Ordinary telephone
|
|
Telephone Ports
|
2 telephone port RJ11 port
|
|
Switch Terminal
|
Ordinary telephone or PBX, PBX (PBX),
public telephone outside the PSTN
|
|
FXS
|
Ringing voltage: 75V, ringing frequency: 25HZ
|
|
FXO
|
Second line input impedance:600Ω (hook),
return loss: 40db,
ring detection voltage:35V
|
|
Ring detection frequency
|
17HZ-60HZ,
second-line input impedance: 600Ω(hook),
return loss: 40 db
|
|
Broadband Voice
|
8KHZ
|
|
Connection
|
Point to point,
telephone to telephone,
telephone to switch
|
|
Code
|
PCM code
|
|
Fiber Ports
|
FC/UPC
|
|
Ethernet Ports (optional)
|
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 402.3, IEEE 402.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
|
|
Transmission distance
|
Single-mode single fiber 20KM
|
|
Environmental Specifications
|
Operating Temperature: -35°～ 75°C
|
|
Storage Temperature: -40°～ 45°C
|
|
Operating Humidity: 0%～95%, non-condensing
|
|
Total power consumption
|
2.5w(Input:DC12V 1A)
|
|
Power supply
|
External power supply,
Input:AC110-40V 50/60Hz,
Output:12V 1A
|
Ordering Information
|
Model
|
Description
|
|
LNK-PCM02
|
Analog Telephone to F/O Converter: 2-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
|
LNK-PCM02-E
|
Analog Telephone to F/O Converter: 2-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
