Mini 125M~1.25G OEO Media Converter (3R Repeater)

Name: Mini 125M125G OEO Media Converter 3R Repeater
Brand: E-link
Price: 39 USD

China Mini 125M~1.25G OEO Media Converter (3R Repeater) wholesale

Brand Name : E-link

Model Number : LNK-MN-OEO-1G

Certification : CE, FCC, RoHS,

Place of Origin : China

MOQ : 1pcs

Price : $39-270

Payment Terms : T/T,PayPal

Supply Ability : 1000pcs/mouth

Delivery Time : 5-12working days

Packaging Details : standard export package

Dimensions (W x H x D) : 58 (W) x 20 (H) x 90 (L) (mm)

Equipment function : 3R Repeater

Transmission Speed : 100Mbps to 1250Mbps

Wavelength : 850nm/1310nm/1550nm

Conversion means : Cut-Through mode

Input voltage : DC 5V~12V

Contact Now

Mini 125M~1.25G OEO Media Converter (3R Repeater)

Mini 125M~1.25G OEO Media Converter (3R Repeater) Advantage

► SFP to SFP optical mode converter

► Supports rate from 100Mbps to 1250Mbps

► Supports multi mode and single-mode

► Wide power supply voltage range

► Compact package size

► Easy installation

Mini 125M~1.25G OEO Media Converter (3R Repeater) Overview

E-link mini SFP to SFP converter offers protocol transparent connectivity between different wavelengths

or fiber modes for speed from 100Mbps to 1250Mbps. Protocol independence allows for use in broad range

of applications including Fast Ethernet, Gigabit Ethernet, OC-12 and Fiber Channel.

Mini 125M~1.25G OEO Media Converter (3R Repeater) Technical Indexes

Performance Data	Technical Indexes
Equipment function	3R Repeater
Transmission Speed	100Mbps to 1250Mbps
Wavelength	850nm/1310nm/1550nm
Transmission Distance	Multi-mode: 2 km; Single mode: 20/40/60/80/100 km;
Conversion means	Cut-Through mode
Input voltage	DC 5V~12V
Power consumption	<3W
Work Environment	Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing )
Dimension	Standalone :58 (W) x 20 (H) x 90 (L) (mm)

Mini 125M~1.25G OEO Media Converter (3R Repeater) Ordering Information

Model	Description
LNK-MN-OEO-1G	Mini 125M~1.25G SFP to SFP Converter

Product Tags:

Mini OEO media converter

1.25G fiber media converter

3R repeater media converter

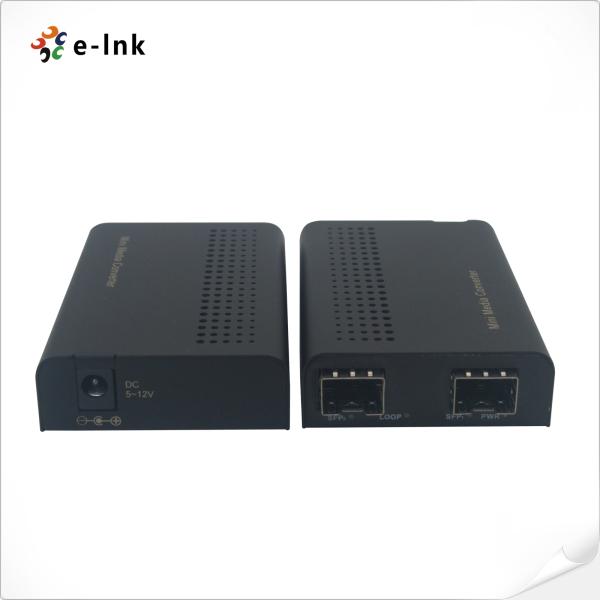

Mini 125M~1.25G OEO Media Converter (3R Repeater) Images
