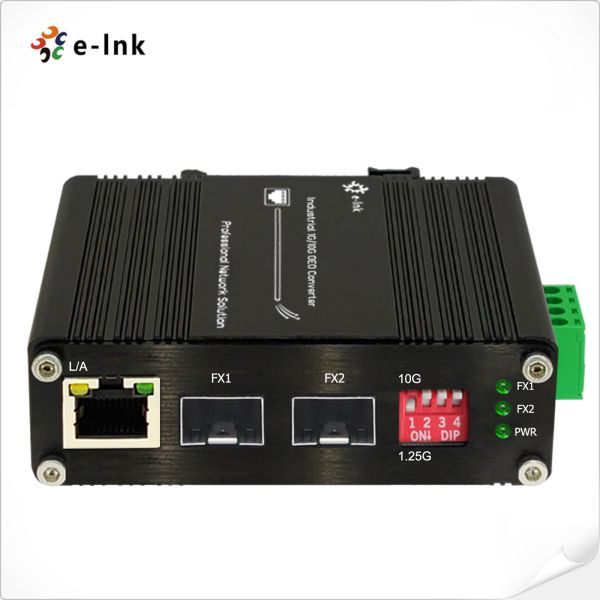

Industrial OEO 1G Ethernet Media Converter 10G SFP+ To SFP+

Name: Industrial OEO 1G Ethernet Media Converter 10G SFP To SFP
Brand: E-link
Price: 39 USD

China Industrial OEO 1G Ethernet Media Converter 10G SFP+ To SFP+ wholesale

Brand Name : E-link

Model Number : ETH-IMC2402-OEO

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : $39-270

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 5-12 working days

Packaging Details : Industrial OEO Converter Standard Export Package

Keywords : 10G SFP+ To SFP+ Media Converter

Equipment function : 3R Repeater

Transmission Speed : 10G: 8.5Gb/s-11.7Gb/s

Interface Type : SFP+ to SFP+

DIP Switch : 4-digit DIP switch function

Mounting Options : DIN-Rail mount

Contact Now

Industrial OEO 1G Ethernet Media Converter 10G SFP+ To SFP+

Industrial OEO Converter 10G SFP+ To SFP+ With 1G Ethernet Media Converter Function

10G OEO Fiber Media Converter Advantages
► 3R function (Regeneration, Reshaping, Re-timing)
► Support hot plugging, full state led display, easy installation
► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
► DIP Switch supports 1.25G/10G fiber data rate switching
► Can be as 1G Ethernet Media Converter if using Ethernet

10G Fiber To Fiber Media Converter Overview

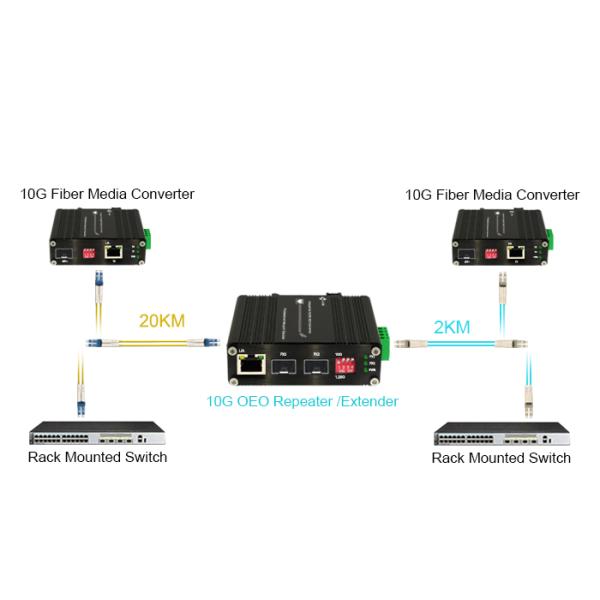

It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.
When only connecting the copper and fiber port, it can be connection between fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 120km.
Din Rail SFP To SFP Media Converter Technical Indexes

Protocols	8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Network Cables	Twisted-pair 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module)
Input Power	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption	8W Max
Dimensions (WxDxH)	95 x 70 x 30 mm
Weight	0.25Kg
Casing	Aluminum Case
Mounting Options:	DIN-Rail mount

Industrial OEO 1G Ethernet Media Converter 10G SFP+ To SFP+

10G OEO Media Converter Ordering Information

Model	Description
ETH-IMC2402-OEO	Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
